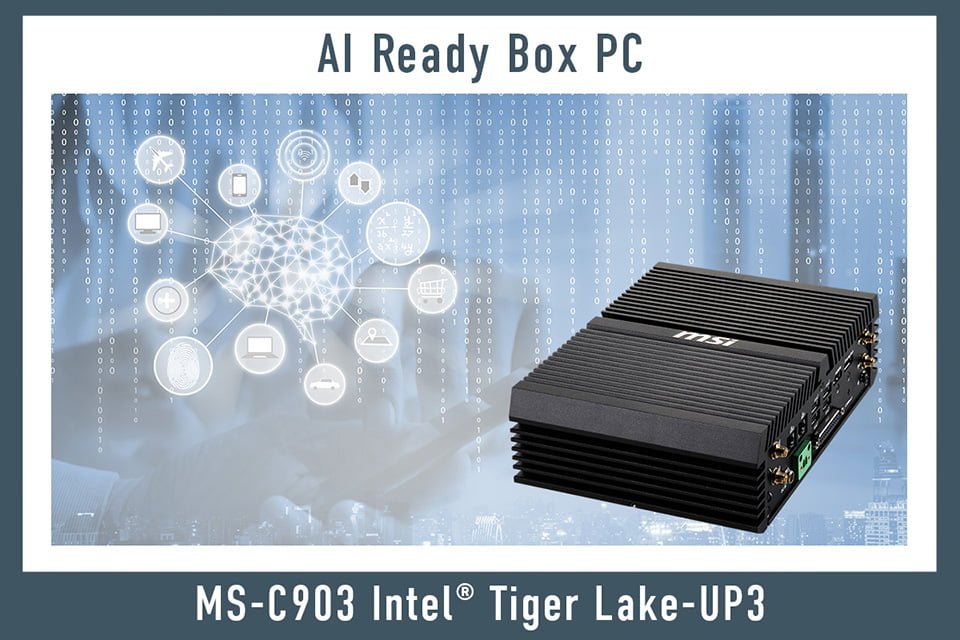

MSI Unveils the MS-C903: A Compact and Powerful Industrial PC for Demanding Applications

MS-C903 Intel

MSI, a world leader in information technology, has unveiled the MS-C903, a versatile and powerful industrial PC designed to meet the needs of various industries, including manufacturing, transportation, automation, and medicine. The MS-C903 is a compact and fanless system that delivers exceptional performance, reliability, and connectivity, making it ideal for a wide range of industrial applications.

Built for Tough Environments

The MS-C903 is engineered to excel in challenging conditions. It features a robust design with a wide operating temperature range of -20°C to 70°C, ensuring reliable operation in harsh environments. Its fanless design eliminates the need for moving parts, reducing the risk of dust ingress and system failures. Additionally, the MS-C903 has a wide voltage DC input (12~24V) with overcurrent protection (OCP) and overvoltage protection (OVP), guaranteeing a stable power supply even in fluctuating power conditions.

Unmatched Performance

The MS-C903 is powered by the latest 11th Gen Intel® Tiger Lake-UP3 processor, delivering exceptional processing power and efficiency. This powerful processor allows the MS-C903 to easily handle demanding applications, such as machine vision, data acquisition, and industrial automation. With support for up to 64GB of DDR4 memory, the MS-C903 ensures smooth multitasking and seamless operation even under heavy workloads.

Versatile Connectivity

The MS-C903 is equipped with a variety of connectivity options to meet the diverse needs of industrial applications. It features dual independent displays with DisplayPort++ and HDMI outputs, allowing for connection to multiple monitors. The MS-C903 also includes two 2.5GbE LAN ports for high-speed networking and an M.2 B-key slot with a nano-SIM holder, supporting 5G/LTE connectivity for reliable wireless communication. Additionally, the MS-C903 provides an M.2 E key slot for Wi-Fi and Bluetooth connectivity, an M.2 M key slot for NVMe storage, and a SATA 3.0 port for traditional 2.5″ SSDs. This comprehensive set of connectivity options makes the MS-C903 ideal for a wide range of industrial deployments.

AI-Ready for the Future

The MS-C903 is designed to be AI-ready, making it suitable for applications that leverage artificial intelligence. The 11th Gen Intel® Tiger Lake-UP3 processor with Intel® Iris® Xe Graphics (on i5/i7 models) provides the necessary processing power and graphics capabilities for AI inferencing and machine learning tasks. This makes the MS-C903 a valuable asset for applications such as predictive maintenance, anomaly detection, and process optimization.

Enhanced Security

The MS-C903 prioritizes security with features like a TPM (Trusted Platform Module) 2.0 chip, which helps ensure the security of system data and platform integrity. Additionally, the MS-C903’s robust design and wide operating temperature range contribute to its overall system security.

Ideal for a Wide Range of Applications

The MS-C903’s combination of compact size, rugged design, powerful performance, versatile connectivity, and AI-ready features makes it suitable for a wide range of industrial applications. Here are some specific examples:

  • Manufacturing: The MS-C903 can be used for machine vision, data acquisition, process control, and human-machine interface (HMI) applications.
  • Transportation: The MS-C903 can be deployed in intelligent transportation systems (ITS), ticketing machines, and digital signage applications.
  • Automation: The MS-C903 is ideal for industrial automation applications such as robot control, pick-and-place systems, and conveyor belt control.
  • Medical: The MS-C903 can be used in medical imaging systems, patient monitoring systems, and laboratory automation.

Availability

The MSI MS-C903 is now available for purchase. More information on pricing and availability can be found on the MSI website or by contacting your local MSI representative.

Specifications

Compact-Size Box PC with Intel® Tiger Lake-UP3 Processor for Ultra Low-Power Fanless Solution

  • Intel® 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series
  • 2 DDR4 3200 MHz SODIMM Slots up to 64GB
  • Dual independent displays: DP++ , HDMI
  • 2 2.5GbE LAN with RJ-45
  • 1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
  • 1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)
  • 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), 2 COM or 1 CANbus (Option by M.2 Module), DIO, Audio
  • Onboard TPM 2.0
  • 6 opening reserved for antennas
  • Anti-Vibration & Shockproof Design to Compliance IEC 61373
  • Wide operating temperature: -20~70°C
  • Wide Voltage DC-IN 12~24V (OCP & OVP)
  • Ultra-Compact with fanless design

**In conclusion, the MSI MS-C903 is a powerful and versatile industrial PC that offers exceptional performance, reliability, and connectivity. Its compact size, fanless design, and wide
