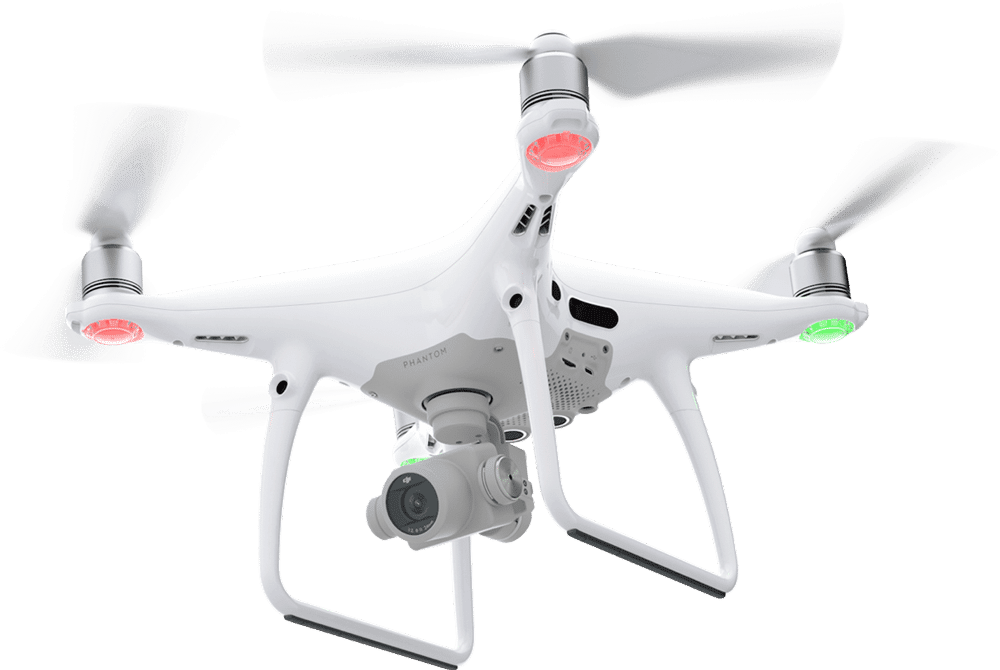

DJI Phantom 4 Pro With 4K Camera 1-inch 20MP CMOS Sensor GPS FPV RC Quadcopter RTF

Phantom 4 PRO

Highlights

Camera with 1-inch 20MP Sensor

An upgraded camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for advanced post-production

Five-directions of Obstacle Sensing

The FlightAutonomy system adds dual rear vision sensors and infrared sensing systems for a total of five-directions of obstacle sensing and four-directions of obstacle avoidance, front and rear sensing range of up to 98ft(30m), protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.

Multiple Flight Modes

Phantom 4 Pro offers three modes for flight: P, A and S. Switching between them allows pilots to get the control they need, whether they seek smoothness, simplicity, intelligent navigation or speed.

In Position Mode, TapFly, ActiveTrack, obstacle sensing and positioning features are available. Sport Mode adds extra agility and higher speed, reaching 45mph (72kph).

7KM Long-range Control

Using brand new DJI Lightbridge HD video transmission technology, the Phantom 4 Pro has a maximum transmission range of 4.3i(7km). Before each flight, it scans a range of available frequencies to find and use the one with the least interference. By supporting 2.4GHz and 5.8 GHz frequency bands, it gives you more reliable control.

Longer Flight Time

The Phantom 4 pro has a maximum flight time of 30 minutes frome a 5870mAh removable battery, providing more time in the air to capture the perfect shot.

DJI GO APP

Using the DJI GO app, a large number of Intelligent Fight Modes are available. It also provides access to full manual camera controls, including ISO, aperture, shutter speed, image formats, and more. Any changes in DJI GO will appear almost instantly on-screen.

DJI Phantom 4 PRO

AIRCRAFT

Weight (Battery & Propellers Included) 1388 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed S-mode: 6 m/s
P-mode: 5 m/s
Max Descent Speed S-mode: 4 m/s
P-mode: 3 m/s
Max Speed S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle S-mode: 42°
A-mode: 35°
P-mode: 25°
Max Angular Speed S-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level 19685 feet (6000 m)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approx. 30 minutes
Operating Temperature Range 32° to 104°F (0° to 40°C)
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)

VISION SYSTEM

Vision System Forward Vision System
Backward Vision System
Downward Vision System
Velocity Range ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range 0 – 33 feet (0 – 10 m)
Operating Range 0 – 33 feet (0 – 10 m)
Obstacle Sensory Range 2 – 98 feet (0.7 – 30 m)
FOV Forward: 60°(Horizontal), ±27°(Vertical)
Backward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
Operating Environment Surface with clear pattern and adequate lighting (lux>15)

CAMERA

Sensor 1’’ CMOS
Effective pixels: 20M
Lens FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 – f/11 auto focus at 1 m – ∞
ISO Range Video:
100 – 3200 (Auto)
100 – 6400 (Manual)
Photo:
100 – 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed 8 – 1/2000 s
Electronic Shutter Speed 8 – 1/8000 s
Image Size 3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size 4096×2160(4096×2160 24/25/30/48/50p)
3840×2160(3840×2160 24/25/30/48/50/60p)
2720×1530(2720×1530 24/25/30/48/50/60p)
1920×1080(1920×1080 24/25/30/48/50/60/120p)
1280×720(1280×720 24/25/30/48/50/60/120p)
Still Photography Modes Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60MbpsH.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate 100 Mbps
Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB)
Photo JPEG, DNG (RAW), JPEG + DNG
Video MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards Micro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range 32° to 104°F (0° to 40°C)

CHARGER

Voltage 17.4 V
Rated Power 100 W

APP / LIVE VIEW

Mobile App DJI GO 4
Live View Working Frequency 2.4 GHz ISM, 5.8 GHz ISM
Live View Quality 720P @ 30fps
Latency Phantom 4 Pro: 220 ms (depending on conditions and mobile device)
Phantom 4 Pro +:160 – 180 ms
Required Operating Systems iOS 9.0 or later
Android 4.4.0 or later
Recommended Devices iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular.
This app is optimized for iPhone 7, iPhone 7 Plus.
Android:Samsung S7 edge, Samsung S7, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Samsung tabs 705c, Ascend Mate 9, Ascend Mate 7, Huawei Honor 8, Huawei P8 Max, Vivo X7, Xiaomi 5, MI 3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, LG V20, Sony Xperia Z3, Smartisan T1.
*Support for additional devices available as testing and development continues.

GIMBAL

Stabilization 3-axis (pitch, roll, yaw)
Controllable Range Pitch: -90° to +30°
Max Controllable Angular Speed Pitch: 90°/s
Angular Control Accuracy ±0.02°

INFRARED SENSING SYSTEM

Obstacle Sensory Range 0.6 – 23 feet (0.2 – 7 m)
FOV 70° (Horizontal), ±10° (Vertical)
Measuring Frequency 10 Hz
Operating Environment Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)

REMOTE CONTROLLER

Operating Frequency 2.400 – 2.483 GHz and 5.725 – 5.825 GHz
Max Transmission Distance 2.400 – 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
5.725 – 5.825 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 1.2 mi (2 km)
SRRC: 3.1 mi (5 km)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Battery 6000 mAh LiPo 2S
Transmitter Power (EIRP) 2.400 – 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
5.725 – 5.825 GHz
FCC: 28 dBm
CE: 14 dBm
SRRC: 20 dBm
Operating Current/Voltage 1.2 [email protected] V
Video Output Port GL300E: HDMI
GL300F: USB
Mobile Device Holder GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM+16 GB ROM)
GL300F: Tablets and smart phones

INTELLIGENT FLIGHT BATTERY

Capacity 5870 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 89.2 Wh
Net Weight 468 g
Charging Temperature Range 41° to 104°F (5° to 40°C)
Max Charging Power 100 W
