ASRock Launches The X570 PG Velocita! Unlock Limitation of AMD Ryzen 5000 Series Desktop Processor

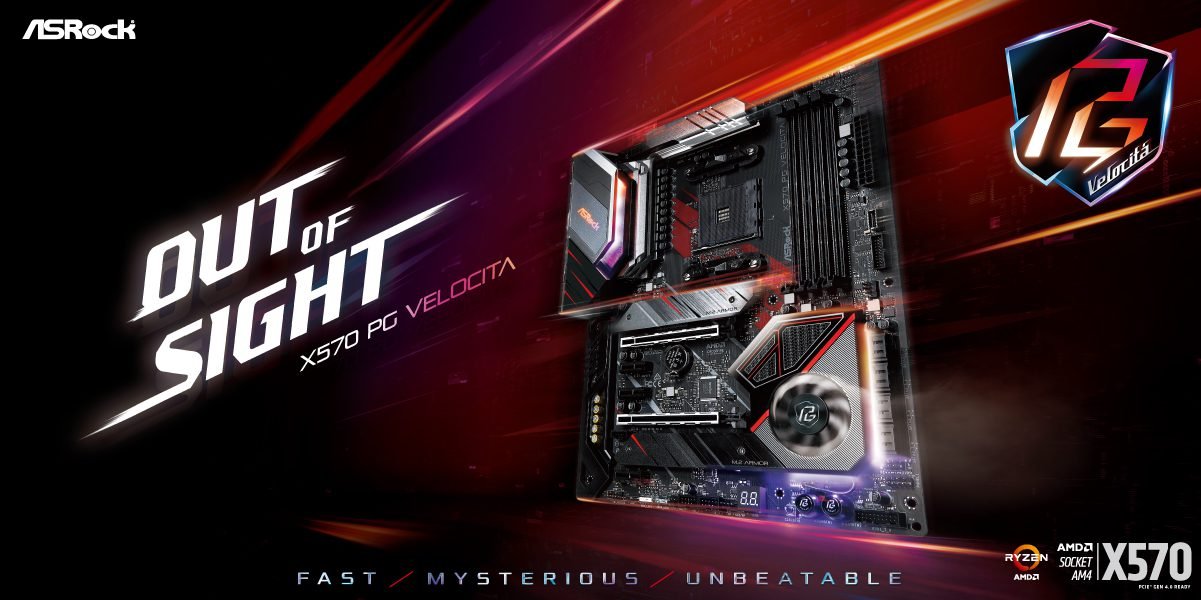

X570-PG-Velocita
X570 PG Velocita

ASRock, a leading global motherboard manufacturer, has launched the X570 PG Velocita. It is a new crew of Phantom Gaming series designed to meet the needs of high-end gamers and the best choice for high price-performance build.

X570 PG Velocita

  • Supports AMD AM4 socket Ryzen™ 2000, 3000, 4000, and 5000 series, processors
  • 14 Power Phase Design, Digi Power, Dr. MOS
  • Supports DDR4 5000+ (OC)
  • 2 PCIe 4.0 x16, 3 PCIe 4.0 x1*
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)*
  • 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
  • Killer E3100 2.5G LAN
  • Killer AX1650 802.11ax WiFi 6*Actual support may vary by CPU

Evolution of Phantom Gaming

Users may well spot on the phantom gaming logo’s difference! The blazing fire in the core symbols the higher transmit rate. Users can enjoy the PCI express 4.0 with double bandwidth from the previous generation. At the same time, the whole new Killer Ethernet & Wifi offers a faster and more reliable networking for gamers towards perfect gaming experiences. The cool color around contrasts quite markedly with the flame inside, making the design code of phantom gaming full of mystery. The frame-break shield integrates all elements above, showing the temperament of domineering and unbeatable strength of new Phantom Gaming.

Killer™ Wireless and Killer™ Ethernet

ASRock X570 PG Velocita has both Killer E3100 and Killer AX1650, which support Killer Prioritization Engine and Killer DoubleShot Pro, offering the most reliable networking. The Killer Prioritization Engine can Identify thousands of games, applications, and websites. It prioritizes real-time packets over other packets and makes Gaming in first priority, offering more enjoyable and uninterrupted online entertainment experiences with better throughput and lowest latency.

Killer DoubleShot Pro is a technology for systems that have both Killer Wireless and Killer Ethernet products, enabling your computer to use Wi-Fi and Ethernet at the same time. It will automatically utilize the fastest network connection for all of the PC’s high priority traffic, and all standard traffic are then sent over the other interface. This ensures the highest priority traffic will always be put on the fastest and most reliable link.

Gamer-Centric Features for Incredible Performance

For AMD Ryzen 5000 series processors, X570 PG Velocita provides the 14 Digi Power Phase & 50A, Dr. MOS, offering a completely smooth power delivery to fully develop the OC potential of CPUs with optimized heat dissipation. Besides, it provides two Hyper M.2 sockets with full-coverage heatsink for up to Gen4 x4 (64 Gb/s), ensuring that high-performance M.2 SSDs can always work at full capacity and have a longer component lifespan. With PCI express 4.0 slots for graphic cards and all features above, gamers have been already one step forward than other competitors.

Style Your Personality

With Polychrome RGB, ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis, and any RGB devices smoothly. There are both 3-pin addressable RGB header and traditional 4-pin RGB LED headers on X570 PG Velocita that allows users to connect RGB strips directly to the motherboard and sync their lighting system using the app provided

Read Also World’s First AMD 7nm Gaming GPU by ASRock Phantom Gaming X Radeon VII 16G Graphics Card

Specifications of X570 PG Velocita

X570 PG Velocita
Gaming Armor
  • Power – Hi-Density Power Connectors (24 pins, 8 pins, and 4 pins)
  • Memory – 15μ Gold Contact in DIMM Slots
  • VGA Card – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Internet – Killer 2.5G LAN
  • Cooling – XXL Aluminum Alloy Heatsink – Heat Pipe Design
  • Audio – Nahimic Audio
Unique Feature

ASRock USB 3.2 Gen2
– ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– 50A Dr.MOS
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Nichicon 12K Black Caps (100% Japan-made high-quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High-Density Glass Fabric PCB
– 2oz Copper PCB
Killer 2.5G LAN
Killer 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU

– Supports AMD AM4 socket Ryzen™ 2000, 3000, 4000, and 5000 series, processors
– Digi Power design
– 14 Power Phase design

Chipset
– AMD X570
Memory

– Dual-Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. the capacity of system memory: 128GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots

*For Ryzen Series APUs (Picasso), ECC is only supported with PRO CPUs.
Please refer to the below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock’s website.

Ryzen Series CPUs (Vermeer):


Ryzen Series CPUs (Matisse):


Ryzen Series APUs (Renoir):


Ryzen Series CPUs (Pinnacle Ridge):


Ryzen Series CPUs (Picasso):


SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label


**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumper free
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

Graphics

– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz***
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.1
– Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports****
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
– Supports Microsoft® PlayReady

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

***Picasso supports DisplayPort 1.2 up to 4K x 2K (4096×2160) @ 60Hz.

****Picasso supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports

Audio

– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out Port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Nahimic Audio

LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
– Supports Killer LAN Software
– Supports Killer DoubleShotTM Pro
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Wireless LAN

– Killer AX1650x 802.11ax WiFi Module
– Supports IEEE 802.11a/b/g/n/ax
– Supports Dual-Band (2.4/5 GHz)
– Supports Killer WiFi6 802.11ax (2.4Gbps)
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.1 + High-speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShotTM Pro

Slots

AMD Ryzen series CPUs (Vermeer, Matisse)
– 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
AMD Ryzen series APUs (Picasso)
– 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*

– 3 x PCI Express 4.0 x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks

Storage

– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI, and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge, and Picasso)*
– 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*

*If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector

– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Clear CMOS Button

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, and CHA_FAN4/WP can auto-detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)*
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)*
– 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button with LED
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB3_5 port.
ACPI wake-up function is not supported on USB3_5 port.

Software and UEFI

Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Killer LAN Software
– ASRock Polychrome SYNC
– ASRock Key Master UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash

Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

– Quick Installation Guide, Support CD
– 4 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5 GHz Antenna
– 2 x Screws for M.2 Sockets
– 2 x Standoffs for M.2 Sockets

Hardware Monitor

– Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP

Form Factor

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB

OS

– Microsoft® Windows® 10 64-bit

Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

This post was Original Published on ASRock News
